Flow m³/M |
Model |

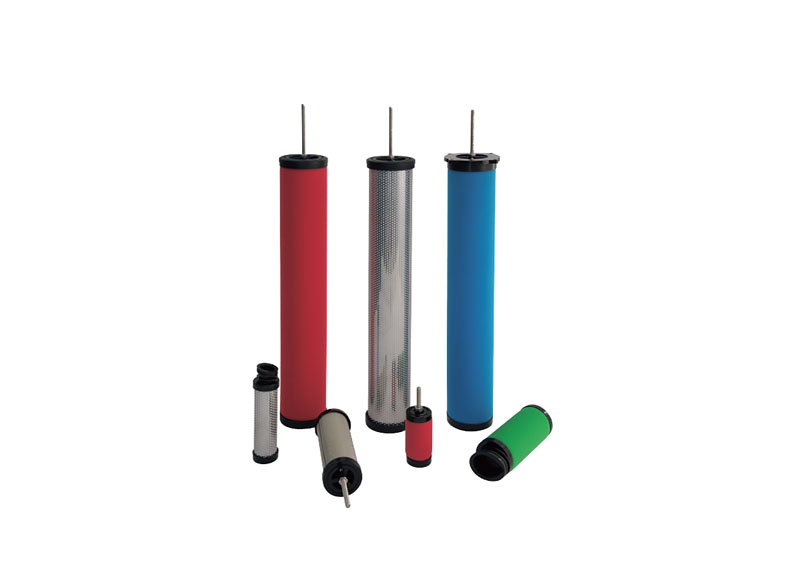

E1 Oil & odour removal filter element
|
E3 ultra-high efficiency oil removal filter element
|
E5 high-efficiency oil removal filter element
|
E7 intake pipe filter element
|
E9 separation filter element
|
0.57 |
E1-12 |
E3-12 |
E5-12 |
E7-12 |
E9-12 |
1 |
E1-16 |
E3-16 |
E5-16 |
E7-16 |
E9-16 |
1.72 |
E1-20 |
E3-20 |
E5-20 |
E7-20 |
E9-20 |
2.9 |
E1-24 |
E3-24 |
E5-24 |
E7-24 |
E9-24 |
4.9 |
EI-28 |
E3-28 |
E5-28 |
E7-28 |
E9-28 |
7.2 |
E1-32 |
E3-32 |
E5-32 |
E7-32 |
E9-32 |
11 |
E1-36 |
E3-36 |
E5-36 |
E7-36 |
E9-36 |
14 |
EI-40 |
E3-40 |
E5-40 |
E7-40 |
E9-40 |
18 |
E1-44 |
E3-44 |
ES-44 |
E7-44 |
E9-44 |
22 |
E1-48 |
E3-48 |
E5-48 |
E7-48 |
E9-48 |
Filter level
Filtration Accuracye E9:3，Oil Content 3ppm
Filtration Accuracye E7:1，Oil Content 1ppm
Filtration Accuracye E5:0.01，Oil Content 0.01ppm
Filtration Accuracye E3:0.01，Oil Content 0.001ppm
Filtration Accuracye activated carbon E1:0.01，Oil Content 0.001ppm
Product characteristics
Strong hydrophobicity, with a 375% higher resistance to water erosion compared to ordinary polyvinylidene fluoride (PVDF) filters;
High filtration accuracy, capable of 100% retention of various phages, bacteria, and particles larger than 0.02 micrometers when used for gas filtration;
Extremely high porosity, low air resistance, and high flux;
Excellent production inertness and chemical corrosion resistance;
The filter cartridge is resistant to impact, backpressure, and can undergo repeated steam sterilization at high temperatures.
Material structure
Filter Medium: Polytetrafluoroethylene (ePTFE) hydrophobic biaxially stretched microporous membrane, available in single-layer or double-layer structure.
Flow Distribution Layer: Imported polypropylene (PP) spunbond nonwoven fabric, polyester fiber (PET) spunbond nonwoven fabric.
Skeleton/End Cap: Regular polypropylene (PP), reinforced high-molecular-weight polypropylene (PP).
Central Column: Regular polypropylene (PP), stainless steel.
Gasket/Seal Ring: Silicone rubber / Ethylene Propylene Diene Monomer (EPDM) rubber / Fluorinated rubber / Fluorinated rubber coated with Teflon.
Connections: Regular polypropylene (PP), reinforced high-molecular-weight polypropylene (PP), reinforced stainless steel lining.
Performance parameter
Filtration Precision: 0.01um, 0.02um, 0.1um, 0.22um, 0.45um, 0.65um, 1um, 3um, 5um
Filtration Area: ≥0.6m² @ 68mm (2.67"), available in 10-inch size.
Maximum Operating Temperature:
Regular polypropylene (PP) skeleton/central column/connections: ≤65℃
Regular PP skeleton and central column with stainless steel-lined connections: ≤85℃
Reinforced high-molecular-weight PP skeleton and central column with stainless steel-lined connections: ≤95℃
Maximum Operating Differential Pressure: Forward differential pressure 4bar @ 23℃ / Reverse differential pressure 2bar @ 23℃
Steam Sterilization: 121℃ @ 30 minutes
Integrity Testing: 100% cleaning with deionized water, 100% integrity testing conducted. For details, please refer to the product quality assurance certificate enclosed with the order.
Application area
Sterilizing Filtration for Compressed Air and Nitrogen:
Filtration for removing microorganisms from compressed air and nitrogen.
Air Terminal Filtration for Antibiotic Fermentation:
Filtration at the air outlet for ensuring sterile conditions during antibiotic fermentation processes.
Air Terminal Filtration for Biotechnological Fermentation:
Filtration at the air outlet for maintaining sterile conditions in biotechnological fermentation processes.
Sterile Inlet and Outlet Filtration for Fermenters, Storage Tanks, and Mixing Tanks:
Filtration for sterile air inlet and outlet in fermentation tanks, storage tanks, and mixing tanks to maintain sterile conditions.
High-Purity Gas Terminal Filtration in the Electronics Industry:
Filtration for high-purity gases used in the electronics industry to ensure purity and remove contaminants.
Air Filtration for Aseptic Packaging:
Filtration for ensuring sterile conditions in air used for aseptic packaging processes.
Clarification and Sterilizing Filtration of Strong Oxidizing Liquids with Low Surface Tension:
Filtration for clarifying and removing microorganisms from strong oxidizing liquids with low surface tension.
Clarification and Sterilizing Filtration of Highly Corrosive Liquids with Low Surface Tension:
Filtration for clarifying and removing microorganisms from highly corrosive liquids with low surface tension.
Order instructions
Filtration Precision: 0.01, 0.02 um absolute precision
Filter Cartridge Length: 9.75", 10", 20", 30", 40"
Connection Types:
DOE = Double Open End
3 = Single Open End with 222 O-ring + Flat Head End Cap
8 = Single Open End with 222 O-ring + Rocket Head
7 = Single Open End with 226 O-ring + Rocket Head
O-ring Materials:
N = Buna-N Nitrile Rubber
E = Epdm Ethylene Propylene Diene Monomer Rubber
V = Viton Fluorocarbon Elastomer
S = Silicone Rubber
F = Teflon-coated Fluorocarbon Elastomer
