High pressure Stainless Steel Precision Filter
WX LINKA

High pressure Stainless Steel Precision Filter (2.0~4.0Mpa)

It is suitable for filtering solid and liquid impurities from compressed air below 4.0Mpa. High pressure gas precision filter is made by use of precision manufacturing process, and the requirements of high pressure technology are fully considered. The filter element made of high-grade 304, 316L stainless steel can be provided with 25, 5, 1 and 0.01um and activated carbon filter performance, to meet various special requirements of customers; it is designed by application of the principle of aerodynamics to ensure that the filter medium pressure drops to the minimum.


Linka always adheres to the quality first, quality service as the purpose, to customer first, cooperation win as the principle.Side by side, customers and dealers will develop together to create brilliant results!


Product selection

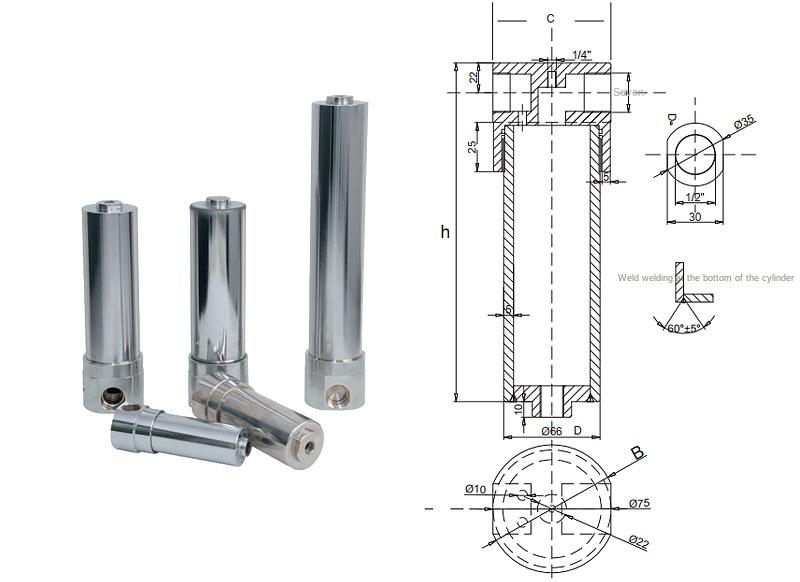

Model
Flow m³/M
Interface
H(High)
C(Diameter)
D(Sewage outlet)
BXG-010*
1
1/2′′ 3/4′′ 1′′
230mm
80mm
1/2
BXG-020*
2
1/2′′ 3/4′′ 1′′
230mm
80mm
1/2
BXG-030*
3
1′′
260mm
106mm
1/2
BXG-050*
5
1-1/2′′
405mm
115mm
1/2
BXG-070*
7
1-1/2′′
505mm
115mm
1/2
BXG-100*
11
1-1/2′′
620mm
115mm
1/2
BXG-100*
11
2′′
620mm
140mm
1/2


* represents the filter level


Level C filtration accuracy: 3 microns, oil content: 3 ppm
Level T filtration accuracy: 1 micron, oil content: 1 ppm
Level A filtration accuracy: 0.01 micron, oil content: 0.01 ppm
Level X filtration accuracy: 0.01 micron, oil content: 0.003 ppm
Level H (activated carbon) filtration accuracy: 0.01 micron,Oil content: 0.001ppm
Level F high efficiency dust removal:filtrationaccuracy 0.1 micron
Level FF super efficient dust removal:filtrationaccuracy 0.01 micron

Technical parameter


Material: 304, 316L stainless steel
Diameter of filter: DN15-DN50
Working medium: compressed air
Operating temperature: ≤80℃
Working pressure: 2.0-4.0Mpa
Filtering accuracy: 3-0.01μm
Special drawing: Customizable
